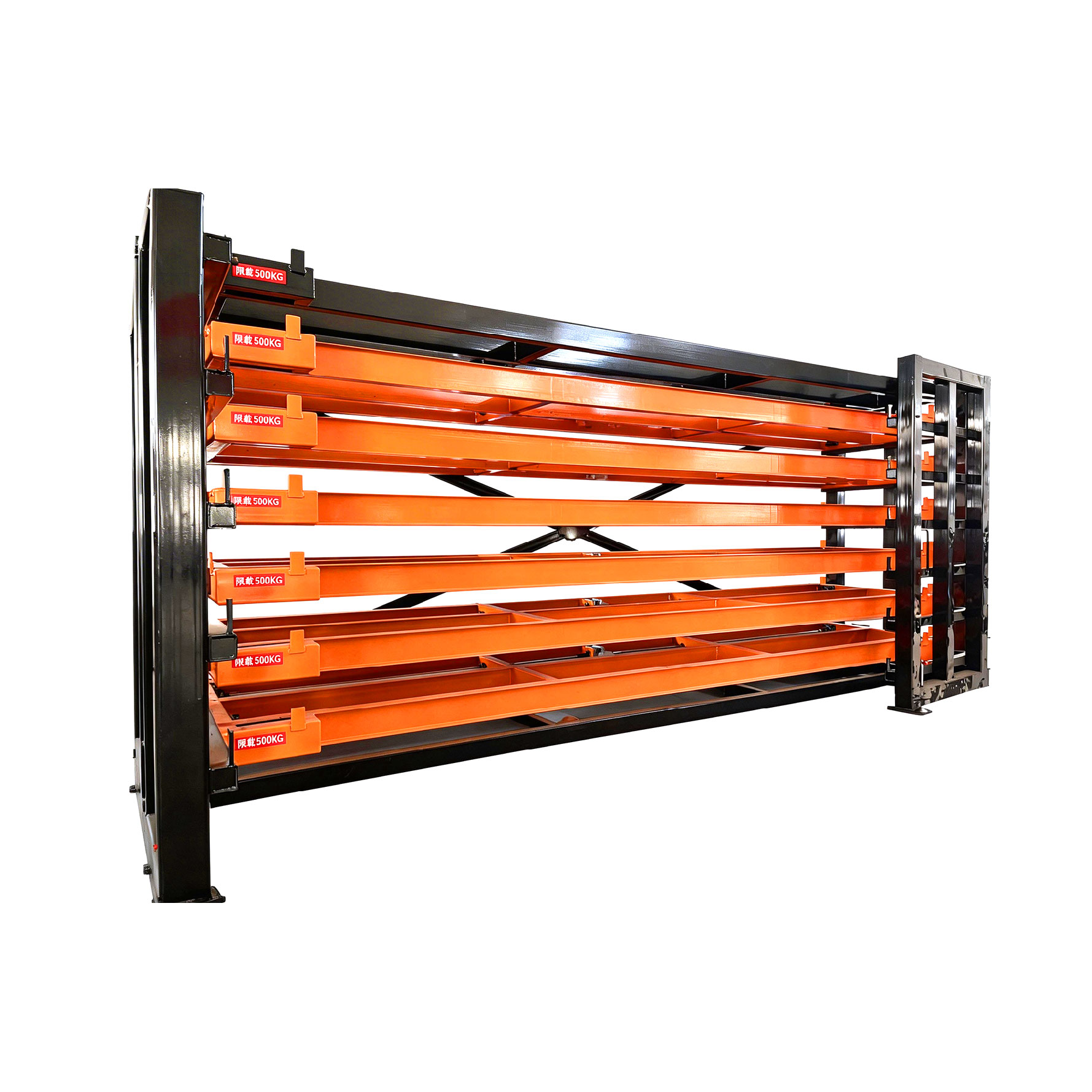

Electrical Drawer Sheet Plate Storage Rack

The whole machine adopts a layered independent drawer and tray structure. Each tray is equipped with an electric drive system, reduction motors, silent rails and load-bearing rollers. Simply press a button to extend and retract the tray automatically without manual pushing or pulling. One worker can easily load, pick and unload plates. Each layer stores materials separately without mutual interference. The bottom plates can be accessed directly without moving upper layers, greatly improving the efficiency of inventory counting and sorting.

  Advantages of Electric Electric Drawer Type Sheet Plate Storage Rack

     1.Fully automatic electric drive, effortless handling of heavy loads: Equipped with high-power drive motors and       stable transmission structures, each layer supports a heavy load of 3 tons to 10 tons. Whether thick steel               plates or coiled aluminum sheets, the tray slides out automatically with one click. No manual force required to       reduce labor intensity, suitable for high-frequency daily material access.

 2.Independent electrically controlled trays, non-interfering material access: Each tray is controlled   independently for separate extension and retraction. Only the target layer opens when picking plates of any   specification while other layers remain stationary. Clear classified storage reduces paint and mirror surface     scratches caused by repeated plate movement.

 3.Vertical storage to drastically save workshop space: Multi-layer vertical layout makes full use of warehouse   vertical space instead of flat ground stacking. Warehouse space utilization rate is increased by over 70%. A   large quantity of plates can be neatly stored even in small sheet metal workshops and compact raw material   warehouses.

 4. Multiple safety protections for safer workshop operation: Built-in travel limit stop, overload protection and   power-off self-locking devices. The tray automatically stops when fully extended. It halts immediately if       blocked  by foreign objects to prevent plate sliding, equipment overload and safety accidents caused by heavy   plate tipping.

  5. Superior plate protection to cut raw material waste:  Anti-slip wear-resistant pads are fitted on tray surfaces.   Plates lie flat without compression to avoid warping, scratches and collision damage, effectively lowering     scrap loss of high-value stainless steel plates, mirror aluminum plates and acrylic sheets.

6. Durable & low-maintenance, adaptable to harsh factory environments: The main frame is welded with thickened square tubes and treated with acid washing and electrostatic powder spraying for rust and corrosion resistance. Standardized modular electric components enable easy inspection and replacement, allowing long-term stable operation in dusty and humid processing workshops.

Technical Specifications Of Electrical Electric Drawer Type Sheet Plate Storage Rack
